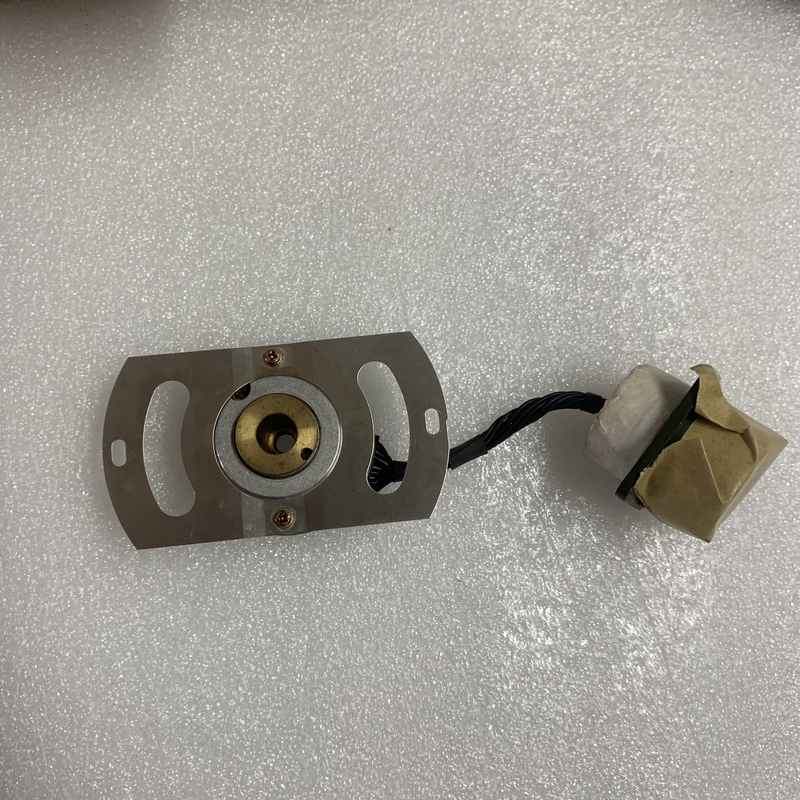

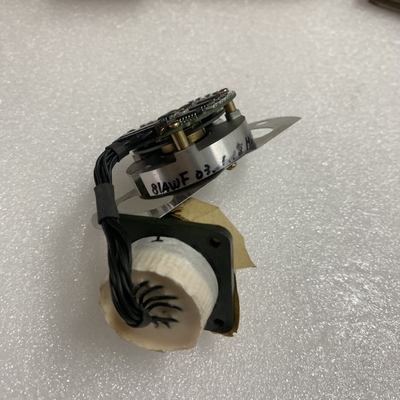

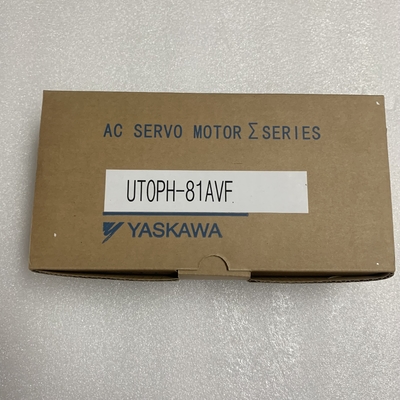

Yaskawa UTOPH-81AVF Servo Motor Encoder 8192 Pulses / Rev 1 YEAR NEW

Yaskawa SGMGV-30A3A61 Product information and technical parameters:
Brand: Yaskawa
Name: Rotary servo motor
Model: SGMGV-30A3A61


Sigma -V series servo motor SGMGV.
Rated output: 2.9kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.


A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.


Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.


Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 6kw.


Power supply voltage: three phase AC200V.
Design sequence: A type.
Interface: MECHATROLINK- III communication command type (linear servo motor).
Optional (hardware): rack mounting type.
Realize real time communication
With the maximum transmission speed of 100Mbps and the set of communication cycle 125S ~ 4ms, to achieve a more than 62 stations of the high speed control Yaskawa SGMGV-30A3A61


Through the high speed of communication, can send and receive all kinds of control information in real time.
Contribute to cost savings
A maximum of 62 stations can be connected to the communication line, can significantly reduce wiring costs and time Yaskawa SGMGV-30A3A61.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command.


High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronization phase control.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly Yaskawa SGMGV-30A3A61. Servo motor type SGMAH (speed: 3000r/min).
Power: 30W.
Power supply voltage: single phase AC100V.
Serial encoder: 16 bit absolute value.


Design sequence: A.
Shaft end: straight shaft with key.
Optional parts: with DC90V brake.
Improve mechanical properties.
In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,


Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,Single axis servo driver SGD7S.
Maximum applicable motor capacity: 0.5kW.
Voltage: three phase AC200V.


Interface: MECHATROLINK-III communication command type (Chinese market is RJ-45 connector).
Design sequence: A.
Hardware purchase: rack installation specifications.
It is helpful to the servo performance of ultra high speed and ultra precision control SGMGV-30A3A61.
Maximize the performance of the device, to solve the problem.
Single axis servo unit.
Speed frequency response 3.1kHz.


Best use: in order to release the EX/FT specifications.
Vibration suuppression function SGMGV-30A3A61.
For the inability to improve the speed loop gain of the machine,
Can reduce the velocity fluctuation by cogging motor.
Smooth drive
